1-10V Controls

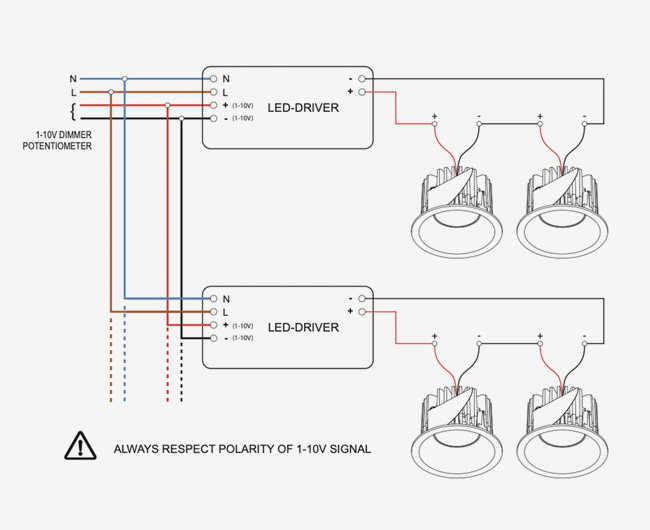

1-10V (Analogue) Dimming uses an analogue signal. It is a universal protocol, so all 1-10V drivers operate in the same manner. Each driver requires a standard switched wiring plus two core control line to carry the low voltage signal (which is polarity sensitive) most electricians use 'bell wire' for the 1-10v control wire.

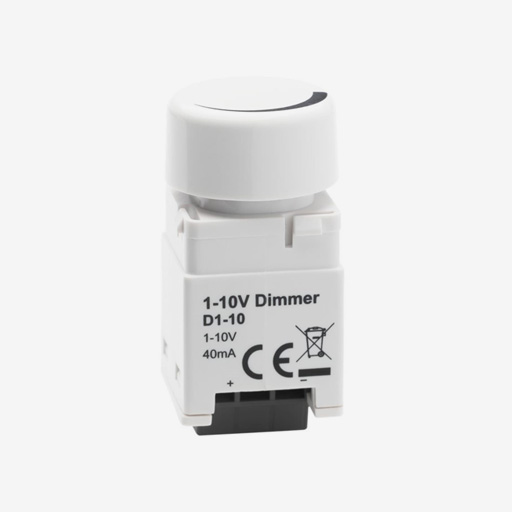

In its simplest form use a rotary potentiometer or 1-10V controller, Modular Hue Connect or professional dimming system. Excellent stable dimming 100-1%. Wiring for 1-10V requires an additional 2-Core LV control cable, and a 1-10V controller or potentiometer is required. Some quantity limits to each potentiometer. The 240v load still required to be switched to off. 1-10v drivers available to suit most LED mA and Vf (EldoLED, Tridonic, Osram, Vossloh, TCI etc.

1-10V (Analogue) Dimming uses an analogue signal. It is a universal protocol, so all 1-10V drivers operate in the same manner. Each driver requires a standard switched wiring plus two core control line to carry the low voltage signal (which is polarity sensitive) most electricians use 'bell wire' for the 1-10v control wire. In its simplest form use a rotary potentiometer or 1-10V controller, Modular Hue Connect or professional dimming system. Excellent stable dimming 100-1%. Wiring for 1-10V requires an additional 2-Core LV control cable, and a 1-10V controller or potentiometer is required. Some quantity limits to each potentiometer. The 240v load still required to be switched to off. 1-10v drivers available to suit most LED mA and Vf (EldoLED, Tridonic, Osram, Vossloh, TCI etc.
